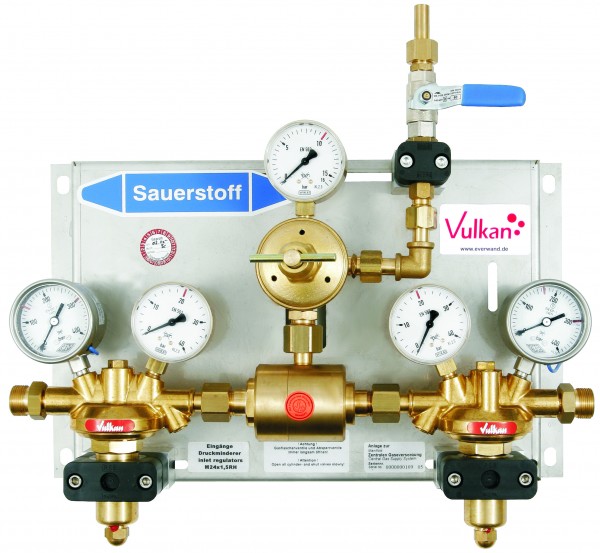

Automatic switching manifold Vulkan TecLine AM 35/300 K Effect. Complete on stainless steel base plate including: 2× manifold regulator H20 Effect acc. to ISO 7291 (adiabatic compression tested) 1× in-line regulator AD 35 1× automatic change-over block, 1× main shut-off valve. 2× contact gauges acc. to DIN EN 837-1 with Reed switch. Inlet pressure max 300 bar, outlet pressure 0–10 bar. Max. flow 50 Nm³/h. Diaphragm: PTFE. Dimensions: 530 × 400 × 210 mm.
Numbers of cylinders:
2x1
Standard:
ISO 7291
Switching:
Automatic
Type of Gas:
Nitrogen (N2)
Product type:
Gas Panels (Manifolds)
Regulation Type:
Single stage
Material:
Brass
Inlet pressure (max):
300 Bar
Outlet pressure:
0 - 10 Bar
Gas Quality:
up to 4.5 (technical gases)
Flow rate:
50 Nm³/h
Inlet Connection:
M 24×1.5 RH
Outlet Connection:
G 3/8" × 10 mm
Application:
- Gas Supply Systems
- Industrial Production
- Metal Processing
- Welding & Cutting
Class (purpose):
- Technical gases
Relief valve:
N
Shut off valve:
Y
Diaphragm Material:
PTFE
Flowmeter:
N
HP Gauge:
LP Gauge:
LP gauge scale:
0 - 16 Bar
Blow-off valve:
N
Temperature range:
-20 to +60 °C
Dimensions:
530 × 400 × 210 mm.
