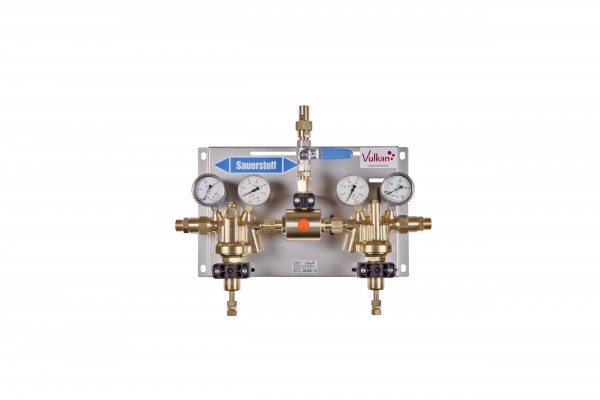

Automatic switching manifold Vulkan TecLine AM 55/300 K Effect. Complete on stainless steel base plate including: 2× manifold fin regulator HR40 Effect acc. to ISO 7291 (adiabatic compression tested) 1× automatic change-over block, 1× main shut-off valve. 2× contact gauges acc. to DIN EN 837-1 with Reed switch. Inlet pressure max 300 bar, outlet pressure 0–28 bar. Max. flow 250 Nm³/h. Diaphragm: Rubber (SS for O₂). Dimensions: 500 × 380 × 230 mm.
Numbers of cylinders:
2x1
Standard:
ISO 7291
Switching:
Automatic
Type of Gas:
Oxygen (O2)
Product type:
Gas Panels (Manifolds)
Regulation Type:
Single stage
Material:
Brass
Inlet pressure (max):
300 Bar
Outlet pressure:
0 - 28 Bar
Gas Quality:
up to 4.5 (technical gases)
Flow rate:
250 Nm³/h
Inlet Connection:
M 24×1.5 RH
Outlet Connection:
G 3/4" × 18 mm
Application:
- Gas Supply Systems
- Industrial Production
- Metal Processing
- Welding & Cutting
Class (purpose):
- Technical gases
Relief valve:
N
Shut off valve:
Y
Diaphragm Material:
Rubber/SS (O2)
Flowmeter:
N
HP Gauge:
LP Gauge:
LP gauge scale:
0 - 40 Bar
Blow-off valve:
N
Temperature range:
-20 to +60 °C
Dimensions:
500 × 380 × 230 mm.
