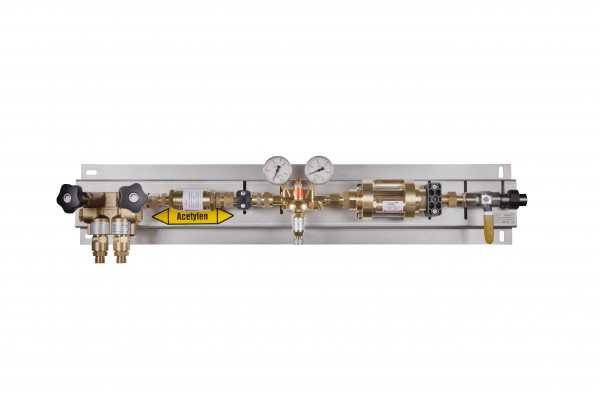

Manual manifold base station for acetylene bundles Vulkan TecLine BSA 20 B. Complete on stainless steel base plate acc. to ISO 14114: 1× distributing block Modula Vareo with automatic quick cut-off valve acc. to ISO 15615, 1× flashback arrestor acc. to ISO 5175, 1× manifold regulator H20 acetylene acc. to ISO 7291, 1× main shut-off valve. Manual switching. Inlet max 26 bar, outlet 0–1.5 bar. Max. flow 18 Nm³/h. Dimensions: 980 × 250 × 230 mm, 19 kg.
Numbers of cylinders:
2
Standard:
ISO 7291
Switching:
Manual
Type of Gas:
Acetylene (C2H2)
Product type:
Gas Panels (Manifolds)
Regulation Type:
Single stage
Material:
Brass
Inlet pressure (max):
300 Bar
Outlet pressure:
0 - 1.5 Bar
Gas Quality:
up to 4.5 (technical gases)
Flow rate:
18 Nm³/h
Inlet Connection:
W 21.8×1/14 LH
Outlet Connection:
G 3/4" × 18 mm
Application:
- Gas Supply Systems
- Industrial Production
- Metal Processing
- Welding & Cutting
Class (purpose):
- Technical gases
Relief valve:
N
Shut off valve:
Y
Diaphragm Material:
EPDM
Flowmeter:
N
HP Gauge:
LP Gauge:
LP gauge scale:
0 - 2.5 Bar
Blow-off valve:
N
Temperature range:
-20 to +60 °C
Weight:
19kg.
Dimensions:
980 × 250 × 230 mm.
