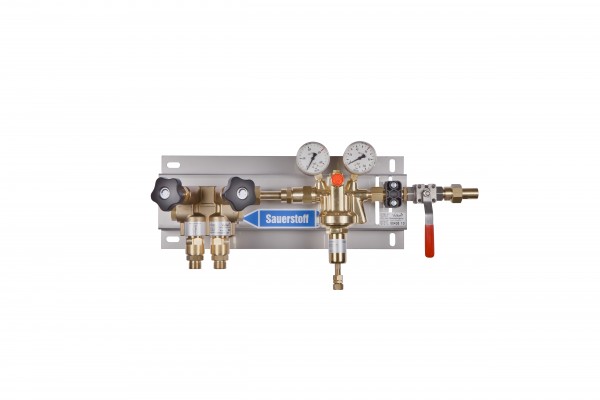

Manual manifold base station Vulkan TecLine BS 120/300 Effect. Modular add-on system (Modula Vareo). Complete on stainless steel base plate: 1× distributing block Modula Vareo (2 inlets, shut-off valves, non-return valves, sinter-metal filters), 1× manifold fin regulator HR60 Effect acc. to ISO 7291 (adiabatic compression tested), 1× main shut-off valve. Manual switching. Inlet max 300 bar, outlet 15–60 bar. Max. flow 450 Nm³/h at 60 bar. Dimensions: 590 × 270 × 210 mm, 14 kg.
Numbers of cylinders:
2
Standard:
ISO 7291
Switching:
Manual
Type of Gas:
Oxygen (O2)
Product type:
Gas Panels (Manifolds)
Regulation Type:
Single stage
Material:
Brass
Inlet pressure (max):
300 Bar
Outlet pressure:
0 - 15–60 Bar
Gas Quality:
up to 4.5 (technical gases)
Flow rate:
450 Nm³/h
Inlet Connection:
M 24×1.5 RH
Outlet Connection:
G 3/4" × 18 mm
Application:
- Gas Supply Systems
- Industrial Production
- Metal Processing
- Welding & Cutting
Class (purpose):
- Technical gases
Relief valve:
N
Shut off valve:
Y
Diaphragm Material:
Rubber
Flowmeter:
N
HP Gauge:
LP Gauge:
LP gauge scale:
0 - 100 Bar
Blow-off valve:
N
Temperature range:
-20 to +60 °C
Weight:
14kg.
Dimensions:
590 × 270 × 210 mm.
