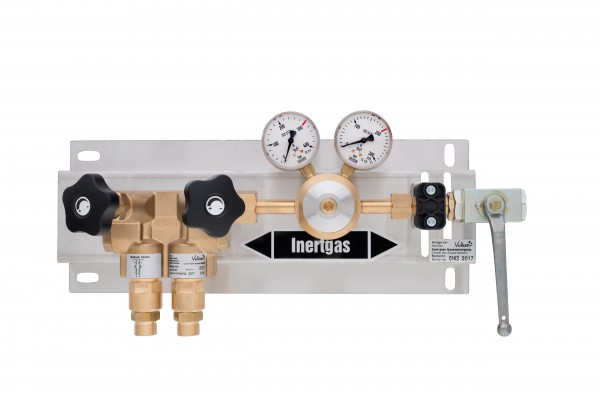

Manual manifold base station Vulkan TecLine BS 200/300. Modular add-on system (Modula Vareo). Complete on stainless steel base plate: 1× distributing block Modula Vareo (2 inlets, shut-off valves, non-return valves, sinter-metal filters), 1× manifold manifold regulator LHR 300/200 acc. to ISO 7291 (adiabatic compression tested), 1× main shut-off valve. Manual switching. Inlet max 300 bar, outlet 15–200 bar. Max. flow 480 Nm³/h at 200 bar. Dimensions: 590 × 330 × 285 mm, 12 kg.
Numbers of cylinders:
2
Standard:
ISO 7291
Switching:
Manual
Type of Gas:
Oxygen (O2)
Product type:
Gas Panels (Manifolds)
Regulation Type:
Single stage
Material:
Brass
Inlet pressure (max):
300 Bar
Outlet pressure:
0 - 15–200 Bar
Gas Quality:
up to 4.5 (technical gases)
Flow rate:
480 Nm³/h
Inlet Connection:
M 24×1.5 RH
Outlet Connection:
G 1/2" Rhi
Application:
- Gas Supply Systems
- Industrial Production
- Metal Processing
- Welding & Cutting
Class (purpose):
- Technical gases
Relief valve:
N
Shut off valve:
Y
Diaphragm Material:
Brass
Flowmeter:
N
HP Gauge:
LP Gauge:
LP gauge scale:
0 - 250 Bar
Blow-off valve:
N
Temperature range:
-20 to +60 °C
Weight:
12kg.
Dimensions:
590 × 330 × 285 mm.
