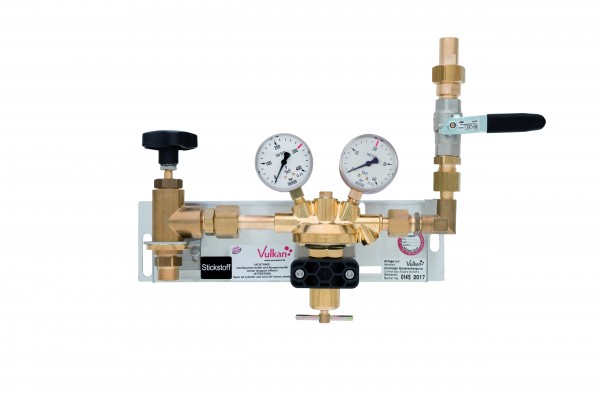

Single-bundle manifold station Vulkan TecLine EB60/300. Complete on stainless steel base plate, with HP shut-off valve, manifold fin regulator H20 acc. to ISO 7291 (adiabatic compression tested), and main shut-off valve. Manual switching. Inlet pressure max 300 bar, outlet pressure 0–20 bar. Max. flow 75 Nm³/h at 20 bar. With standard pressure gauges. Dimensions: 420 × 320 × 110 mm, 5.0 kg.
Numbers of cylinders:
1
Standard:
ISO 7291
Switching:
Manual
Type of Gas:
Oxygen (O2)
Product type:
Gas Panels (Manifolds)
Regulation Type:
Single stage
Material:
Brass
Inlet pressure (max):
300 Bar
Outlet pressure:
0 - 20 Bar
Gas Quality:
up to 4.5 (technical gases)
Flow rate:
75 Nm³/h
Inlet Connection:
M 24×1.5 RH
Outlet Connection:
G 3/4" × 18 mm
Application:
- Gas Supply Systems
- Industrial Production
- Metal Processing
- Welding & Cutting
Class (purpose):
- Technical gases
Relief valve:
N
Shut off valve:
Y
Diaphragm Material:
PTFE
Flowmeter:
N
HP Gauge:
LP Gauge:
LP gauge scale:
0 - 25 Bar
Blow-off valve:
N
Temperature range:
-20 to +60 °C
Weight:
5.0kg.
Dimensions:
420 × 320 × 110 mm.
