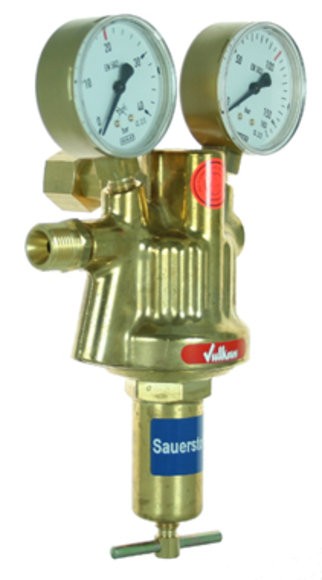

Ribbed tapping point regulator Vulkan TecLine ER20, single stage. Brass body, stainless steel diaphragm, PTFE seals. Gas purity up to 4.5. Safety gauges acc. to DIN EN ISO 5171. Inlet pressure max 100 bar. Outlet pressure 0–20 bar (adjustable). Inlet: G 1/2 RH (right-hand) nut acc. to EN 560. Outlet: G 1/2 RH x 9 mm hose nozzle. Dimensions: 180 × 225 × 75 mm, weight 1.7 kg.
Type of Gas:
Oxygen (O2)
Product type:
Tapping Points
Regulation Type:
Single stage
Material:
Brass
Inlet pressure (max):
100 Bar
Outlet pressure:
0 - 20 Bar
Gas Quality:
up to 4.5 (technical gases)
Inlet Connection:
G 1/2" RH nut (acc. to EN 560)
Outlet Connection:
G 1/2" RH x 9 mm (hose nozzle)
Application:
- Gas Supply Systems
- Industrial Production
- Metal Processing
- Welding & Cutting
Class (purpose):
- Technical gases
Relief valve:
N
Shut off valve:
N
Diaphragm Material:
Stainless steel
Flowmeter:
N
HP Gauge:
LP Gauge:
LP gauge scale:
0 - 25 Bar
Blow-off valve:
N
Temperature range:
-20 to +60 °C
Weight:
1.7kg.
Dimensions:
180 × 225 × 75 mm.
