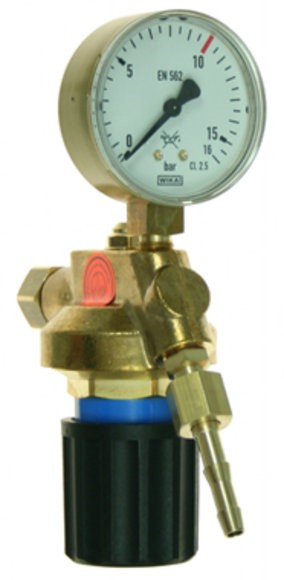

Tapping point regulator Vulkan TecLine E10, single stage. Brass body, Perbunan diaphragm and seals. Gas purity up to 4.5. Safety gauges acc. to DIN EN ISO 5171. Inlet pressure max 20 bar. Outlet pressure 0–10 bar (adjustable). Max. flow 46 Nm³/h at 10 bar back pressure. Inlet: G 3/8 RH (right-hand) nut acc. to EN 560. Outlet: G 1/4 RH x 6 mm hose nozzle. LP gauge: 0–16 bar. Dimensions: 120 × 160 × 65 mm, weight 1.0 kg.
Type of Gas:
Oxygen (O2)
Product type:
Tapping Points
Regulation Type:
Single stage
Material:
Brass
Inlet pressure (max):
20 Bar
Outlet pressure:
0 - 10 Bar
Gas Quality:
up to 4.5 (technical gases)
Flow rate:
46 Nm³/h
Inlet Connection:
G 3/8" RH nut (acc. to EN 560)
Outlet Connection:
G 1/4" RH x 6 mm (hose nozzle)
Application:
- Gas Supply Systems
- Industrial Production
- Metal Processing
- Welding & Cutting
Class (purpose):
- Technical gases
Relief valve:
N
Shut off valve:
N
Diaphragm Material:
Perbunan
Flowmeter:
N
HP Gauge:
LP Gauge:
LP gauge scale:
0 - 16 Bar
Blow-off valve:
N
Temperature range:
-20 to +60 °C
Weight:
1.0kg.
Dimensions:
120 × 160 × 65 mm.
