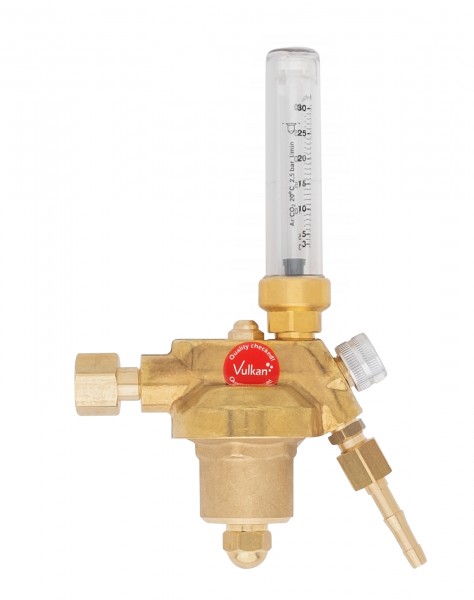

Tapping point regulator Vulkan TecLine E10F, single stage with integrated flowmeter for precise flow control. Brass body, Perbunan diaphragm and seals, acc. to ISO 2503 Class 10. Inlet pressure max 20 bar. Outlet pressure 4.5 bar (fixed). Flowmeter range 0.5–5.0 Nl/min (adjustable). Inlet: G 3/8 RH (right-hand) nut acc. to EN 560. Outlet: G 1/4 RH x 6 mm hose nozzle. Dimensions: 120 × 210 × 65 mm, weight 1.0 kg.
Type of Gas:
CO₂/Argon (Ar, CO2)
Product type:
Tapping Points
Regulation Type:
Single stage
Material:
Brass
Inlet pressure (max):
20 Bar
Outlet pressure:
0 - 4.5 (fixed) Bar
Gas Quality:
up to 4.5 (technical gases)
Flow rate:
0.5–5.0 Nl/min Nm³/h
Inlet Connection:
G 3/8" RH nut (acc. to EN 560)
Outlet Connection:
G 1/4" RH x 6 mm (hose nozzle)
Application:
- Gas Supply Systems
- Industrial Production
- Metal Processing
- Welding & Cutting
Class (purpose):
- Technical gases
Relief valve:
N
Shut off valve:
N
Diaphragm Material:
Perbunan
Flowmeter:
Y
HP Gauge:
LP Gauge:
Blow-off valve:
N
Temperature range:
-20 to +60 °C
Weight:
1.0kg.
Dimensions:
120 × 210 × 65 mm.
