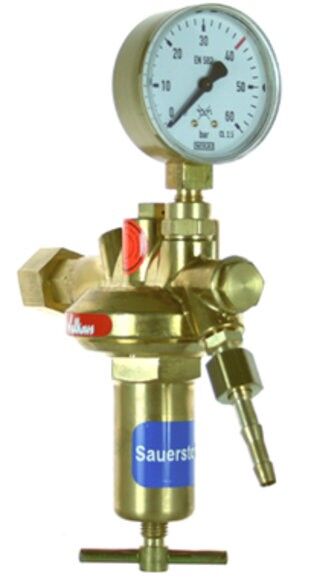

Tapping point regulator Vulkan TecLine E40, single stage. Brass body, PTFE diaphragm (stainless steel for oxygen), PTFE seals. Gas purity up to 4.5. Safety gauges acc. to DIN EN ISO 5171. Inlet pressure max 60 bar. Outlet pressure 0–40 bar (adjustable). Max. flow 120 Nm³/h at 40 bar back pressure. Inlet: G 1/2 RH (right-hand) nut acc. to EN 560. Outlet: G 1/2 RH x 9 mm hose nozzle. Dimensions: 180 × 225 × 75 mm, weight 1.7 kg.
Type of Gas:
Oxygen (O2)
Product type:
Tapping Points
Regulation Type:
Single stage
Material:
Brass
Inlet pressure (max):
60 Bar
Outlet pressure:
0 - 40 Bar
Gas Quality:
up to 4.5 (technical gases)
Flow rate:
120 Nm³/h
Inlet Connection:
G 1/2" RH nut (acc. to EN 560)
Outlet Connection:
G 1/2" RH x 9 mm (hose nozzle)
Application:
- Gas Supply Systems
- Industrial Production
- Metal Processing
- Welding & Cutting
Class (purpose):
- Technical gases
Relief valve:
N
Shut off valve:
N
Diaphragm Material:
Stainless steel
Flowmeter:
N
HP Gauge:
LP Gauge:
LP gauge scale:
0 - 50 Bar
Blow-off valve:
N
Temperature range:
-20 to +60 °C
Weight:
1.7kg.
Dimensions:
180 × 225 × 75 mm.
