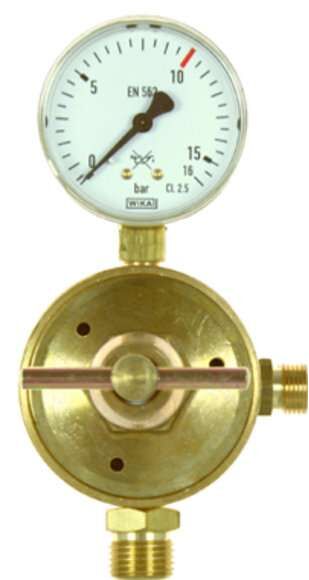

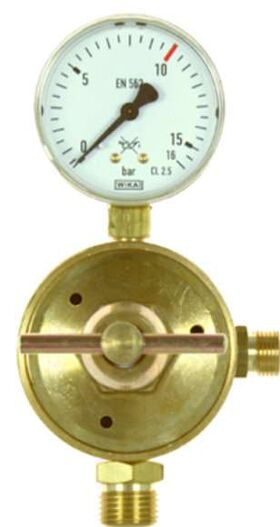

Working pressure reducer Vulkan AD 35 for fuel gases 0 - 10 bar for AM 35
Standards & Design:

single-stage design, with safety pressure gauge according to DIN EN ISO 5171
according to DIN EN 560

Technical data:

• Maximum inlet pressure: 20 bar
• Output pressure: 0 - 10 bar
• Outlet pressure gauge: 0 - 16/10 bar

Performance:

• Maximum output: 50 Nm³/h
• at 10 bar outlet pressure

Connections:

• Inlet connection: External thread G1/2RHak according to DIN EN 560
• Outlet connection: External thread G3/8RHak according to DIN EN 560

Dimensions:

Width x Height x Depth: 89 x 166 x 134 mm

Variants & options:

• Gas purity/diaphragm: Standard: - for technical gases up to a gas purity of 4.5 with a standard membrane
• Optional (surcharge): - for pure gases up to a gas purity of 5.0 with a stainless steel membrane
• SS321 (1.4541)
