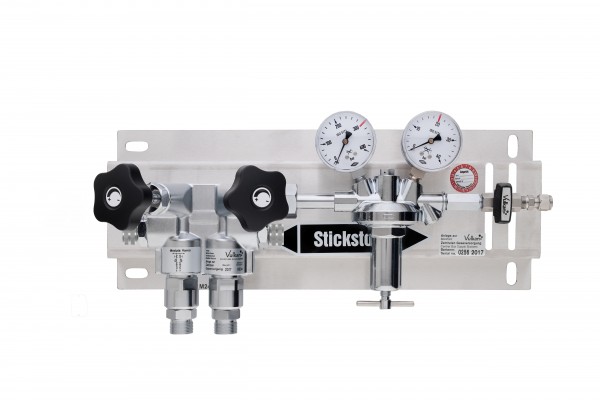

Manual manifold base station Vulkan LabLine BS 50/300 Effect, chrome-plated. Modular add-on system (Modula Vareo). Manual switching. Complete on stainless steel base plate: 1× distributing block, 1× manifold regulator H10 acc. to ISO 7291, 1× main shut-off valve, with purge valves. Inlet max 300 bar, outlet 0–10 bar. Max. flow 50 Nm³/h. Stainless steel diaphragm. Gas purity up to 5.0. Dimensions: 570 × 250 × 210 mm, 10 kg.
Numbers of cylinders:
2
Standard:
ISO 7291
Switching:
Manual
Type of Gas:
Oxygen (O2)
Product type:
Gas Panels (Manifolds)
Regulation Type:
Single stage
Material:
Chrome-plated brass
Inlet pressure (max):
300 Bar
Outlet pressure:
0 - 10 Bar
Gas Quality:
up to 5.0 (laboratory gases / laser gases)
Flow rate:
50 Nm³/h
Inlet Connection:
M 24×1.5 RH
Outlet Connection:
Clamp ring 8 mm
Application:
- Gas Supply Systems
- Laboratory
- Medical Technology
- Research & Development
- Universities
Class (purpose):
- Laboratory gases | laser gases
Relief valve:
N
Shut off valve:
Y
Diaphragm Material:
Stainless steel
Flowmeter:
N
HP Gauge:
LP Gauge:
LP gauge scale:
0 - 16 Bar
Blow-off valve:
N
Temperature range:
-20 to +60 °C
Weight:
10kg.
Dimensions:
570 × 250 × 210 mm.
