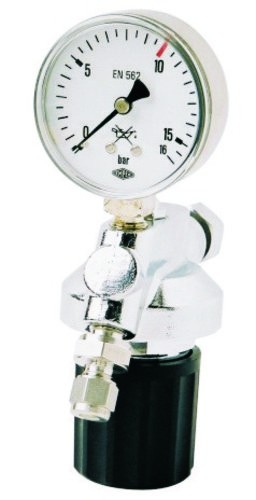

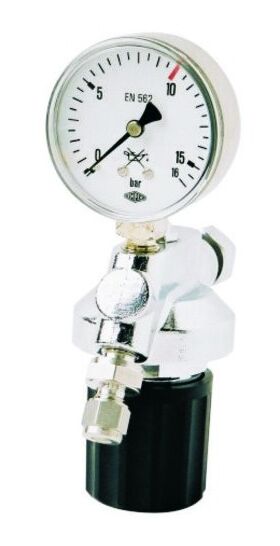

Tapping point regulator Vulkan LabLine E10, single stage. Chrome-plated brass body, stainless steel diaphragm, EPDM seals. Gas purity up to 5.0. Safety gauges acc. to DIN EN ISO 5171. Leakage rate 1×10⁻⁶ mbar·l/s. Inlet pressure max 20 bar. Outlet pressure 0–10 bar (adjustable). Max. flow 40 Nm³/h at 10 bar back pressure. Inlet: G 3/8 RH (right-hand) nut acc. to EN 560. Outlet: stainless steel clamp ring fitting 6 mm. LP gauge: 0–16 bar. Dimensions: 120 × 180 × 65 mm, weight 1.0 kg.
Type of Gas:
Oxygen (O2)
Product type:
Tapping Points
Regulation Type:
Single stage
Material:
Chrome-plated
Inlet pressure (max):
20 Bar
Outlet pressure:
0 - 10 Bar
Gas Quality:
up to 5.0 (laboratory gases / laser gases)
Flow rate:
40 Nm³/h Nm³/h
Inlet Connection:
G 3/8" RH nut (acc. to EN 560)
Outlet Connection:
Clamp ring fitting 6 mm (stainless steel)
Application:
- Gas Supply Systems
- Laboratory
- Medical Technology
- Research & Development
- Universities
Class (purpose):
- Laboratory gases
- laser gases
Relief valve:
N
Shut off valve:
N
Diaphragm Material:
Stainless steel
Flowmeter:
N
HP Gauge:
LP Gauge:
LP gauge scale:
0 - 16 Bar
Blow-off valve:
N
Temperature range:
-20 to +60 °C
Weight:
1.0kg.
Dimensions:
120 × 180 × 65 mm.
