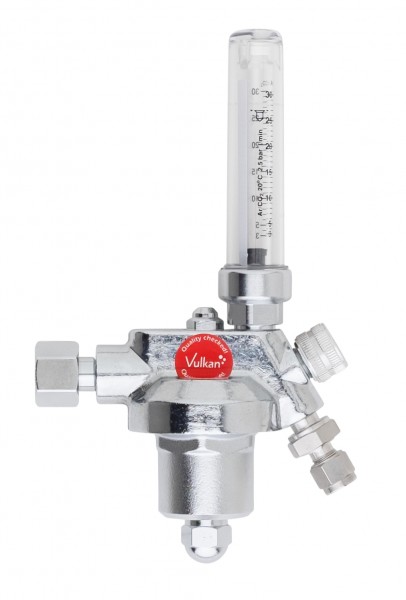

Tapping point regulator Vulkan LabLine E10F for oxygen, single stage with integrated flowmeter and regulating valve for precise flow control. Chrome-plated brass body, stainless steel diaphragm, EPDM seals. Gas purity up to 5.0. Leakage rate 1×10⁻⁶ mbar·l/s. Inlet pressure max 200 bar. Outlet pressure 5.0 bar (fixed). Flow range 1.0–15.0 Nl/min (adjustable). Inlet: G 3/8 RH (right-hand) nut acc. to EN 560. Outlet: stainless steel clamp ring fitting 6 mm. Dimensions: 120 × 220 × 65 mm, weight 1.0 kg.
Type of Gas:
Oxygen (O2)
Product type:
Tapping Points
Regulation Type:
Single stage
Material:
Chrome-plated
Inlet pressure (max):
200 Bar
Outlet pressure:
0 - 5.0 (fixed) Bar
Gas Quality:
up to 5.0 (laboratory gases / laser gases)
Flow rate:
1.0–15.0 Nl/min Nm³/h
Inlet Connection:
G 3/8" RH nut (acc. to EN 560)
Outlet Connection:
Clamp ring fitting 6 mm (stainless steel)
Application:
- Gas Supply Systems
- Laboratory
- Medical Technology
- Research & Development
- Universities
Class (purpose):
- Laboratory gases
- laser gases
Relief valve:
N
Shut off valve:
N
Diaphragm Material:
Stainless steel
Flowmeter:
Y
HP Gauge:
LP Gauge:
Blow-off valve:
N
Temperature range:
-20 to +60 °C
Weight:
1.0kg.
Dimensions:
120 × 220 × 65 mm.
