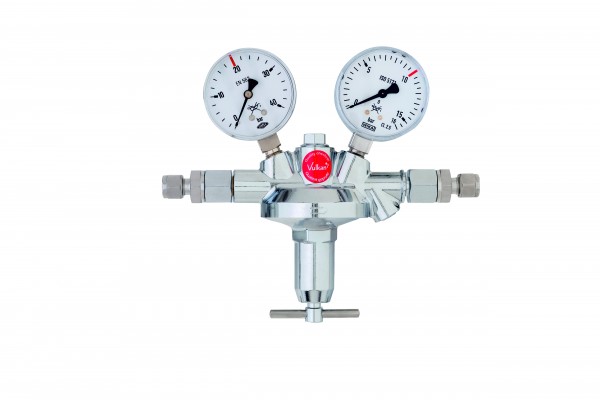

In-line regulator Vulkan LabLine L10, single stage, chrome-plated body with stainless steel diaphragm for gas purity up to 5.0. With safety gauges acc. to DIN EN ISO 5171. Inlet pressure max 20 bar, outlet pressure 0–10 bar adjustable. Max. flow 45 Nm³/h at 10 bar. Inlet: clamp ring 8 mm. Outlet: clamp ring 8 mm. Dimensions: 200 × 190 × 75 mm, 1.5 kg.
Type of Gas:
Oxygen (O2)
Product type:
Line Pressure Regulators
Regulation Type:
Single stage
Material:
Chrome-plated
Inlet pressure (max):
20 Bar
Outlet pressure:
0 - 10 Bar
Gas Quality:
up to 5.0 (laboratory gases / laser gases)
Flow rate:
45 Nm³/h
Inlet Connection:
Clamp ring 8 mm
Outlet Connection:
Clamp ring 8 mm
Application:
- Gas Supply Systems
- Laboratory
- Medical Technology
- Research & Development
- Universities
Class (purpose):
- Laboratory gases | laser gases
Relief valve:
N
Shut off valve:
N
Diaphragm Material:
Stainless steel
Flowmeter:
N
LP Gauge:
LP gauge scale:
0 - 16 Bar
Blow-off valve:
N
Temperature range:
-20 to +60 °C
Weight:
1.5kg.
Dimensions:
200 × 190 × 75 mm.
