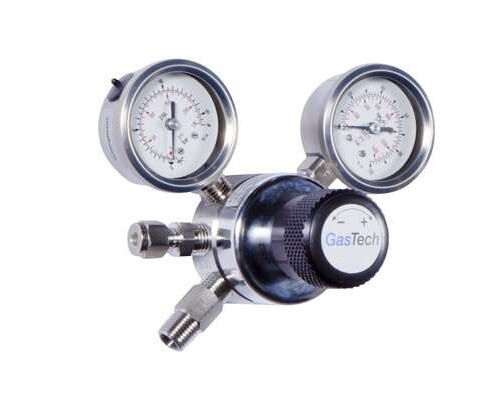

Compact single-stage line pressure regulator according to ISO 2503 for technical, medical, corrosive, laboratory and high-purity gases. Inlet and outlet: 1/4" NPT-F thread or compression fitting. Outlet pressure gauge Ø50 mm according to DIN 837. 50 µm inlet filter and relief valve. Gas purity up to 6.0. Maximum inlet pressure up to 300 bar depending on standard; coding legend additionally defines inlet pressure classes L=70 bar, H=210 bar, 300=300 bar (brass only), 400=400 bar (stainless steel only). Outlet pressure ranges from 1.5 to 30 bar, special ranges up to 60 bar possible. Temperature range -40 to +70 °C. Body materials: chrome-plated brass, stainless steel or Monel. Membrane materials: stainless steel or Hastelloy. ECD suitable. Leak rate < 1×10^-8 (helium). ATEX and PED compliant. Options include inlet gauge, shut-off or metering valve, self or external purge system, contact gauge or pressure transmitter.
Product type:
Line Pressure Regulators
Regulation Type:
Single stage
Material:
Chrome-plated brass
Inlet pressure (max):
70 Bar
Outlet pressure:
0 - 1.5 Bar
Gas Quality:
up to 6.0 (ultrapure gases)
Application:
- Gas Supply Systems
- Laboratory
- Medical Technology
- Research & Development
Class (purpose):
- Laboratory gases
- Technical gases
- Ultrapure gases
Non-return valve:
Relief valve:
Y
Solenoid valve:
HP Gauge:
HP gauge scale:
0 - 0 to 40 Bar
LP Gauge:
LP gauge scale:
0 - 0 to 16 Bar
Temperature range:
-40 to +70 °C
W (Width) x H (Height) x D (Depth):
72*91*114mm.
