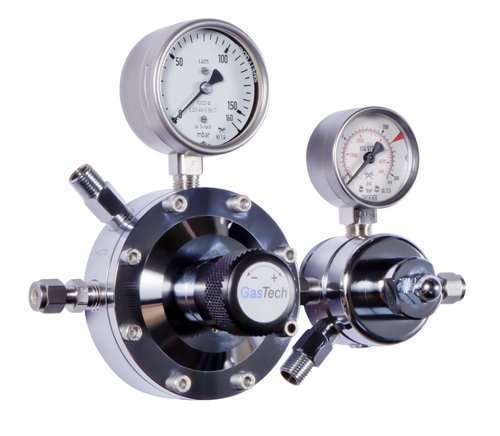

Compact two-stage line fine pressure regulator type Omega II in accordance with ISO 2503 for technical, medical, corrosive, laboratory and high-purity gases. Two-stage design provides exceptionally stable millibar-range outlet pressure. Features: compact design with high control accuracy; inlet and outlet: 1/4" NPT-F, alternatively compression fitting; outlet pressure gauge Ø 63 mm; 50 µm inlet filter; 2 relief valves (one per stage); gas purity up to 6.0; temperature range -40 to +70 °C; body materials: chrome-plated brass, stainless steel or Monel; diaphragm: stainless steel or Hastelloy; seat: PCTFE; ECD compatible; ATEX compliant (94/9/EG); PED compliant (97/23/EG). Options: inlet pressure gauge, shut-off or metering valve, gas purging system (internal or external), contact gauge or pressure transmitter.
Product type:
Line Pressure Regulators
Regulation Type:
Double stage
Material:
Stainless steel
Inlet pressure (max):
15 Bar
Outlet pressure:
0 - 0.15 Bar
Gas Quality:
up to 6.0 (ultrapure gases)
Application:
- Chemical Industry
- Gas Chromatography
- Laboratory
- Medical Technology
- Pharmaceutical Industry
- Photovoltaic Industry
- Research & Development
- Semiconductor Industry
- Spectrometry
- Universities
Class (purpose):
- Corrosive gases
- Laboratory gases
- Medical gases
- Technical gases
- Ultrapure gases
Relief valve:
Y
LP Gauge:
Temperature range:
-40 up to +70 °C
