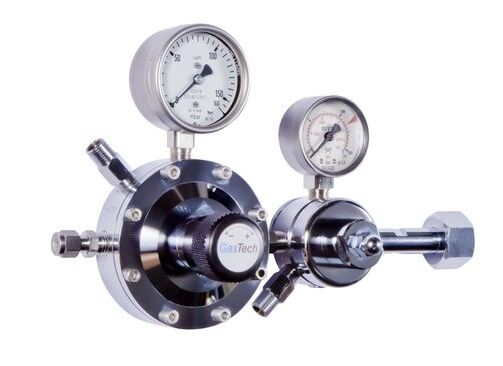

Compact two-stage cylinder pressure regulator (ISO 2503) for technical, medical, corrosive, laboratory and high-purity gases; very high regulation accuracy for setting very low pressures in the mbar range; inlet (right): cylinder connection per DIN 477-1 or DIN 477-5, alternatively 1/4" NPT-F; outlet: compression fitting, alternatively 1/4" NPT-F; inlet pressure gauge Ø50 mm (DIN 837) and outlet pressure gauge Ø63 mm (DIN 837); 50 µm inlet filter; relief valve in each stage; gas purity up to 6.0; max inlet pressure up to 300 bar depending on standard, 210 bar for the DIN 477-1 No. 6 configuration shown in the ordering example; outlet pressure ranges 50–1000 mbar; temperature -40 to +70 °C; body materials: chrome-plated brass, stainless steel or Monel; diaphragm: stainless steel or Hastelloy; ECD compatible; leak rate < 1×10^-8 (He); ATEX and PED compliant; options: shut-off or metering valve, purge system (self or external), contact gauge or pressure transmitter.
Product type:
Cylinder regulators
Regulation Type:
Double stage
Material:
Chrome-plated brass
Inlet pressure (max):
210 Bar
Outlet pressure:
0 - 0,050 Bar
Gas Quality:
up to 6.0 (ultrapure gases)
Application:
- Gas Chromatography
- Laboratory
- Medical Technology
- Pharmaceutical Industry
- Photovoltaic Industry
- Research & Development
- Semiconductor Industry
- Spectrometry
- Universities
Class (purpose):
- Ultrapure gases
Non-return valve:
Relief valve:
Y
Solenoid valve:
HP Gauge:
HP gauge scale:
0 - 0 to 60 Bar
LP Gauge:
LP gauge scale:
0 - 0 to 40 Bar
Temperature range:
-40 to +70 °C
W (Width) x H (Height) x D (Depth):
279*88*183mm.
